✅ Product Overview
The LM215WF3(SD) series is the genuine 21.5-inch LED LCD display panel used in Apple iMac A1418 (2012–2017) models.
Manufactured by LG Display, it delivers vivid colors, excellent brightness, and full HD resolution — ideal for original screen replacement or repair.
🔧 Compatibility
-
Compatible iMac Models: iMac 21.5″ A1418
-
Compatible Years / EMC:
-
Late 2012 (EMC 2544)
-
Late 2013 (EMC 2638)
-
Mid 2014 (EMC 2805)
-
Late 2015 (EMC 2833)
-
2017 (EMC 3068)
-
-

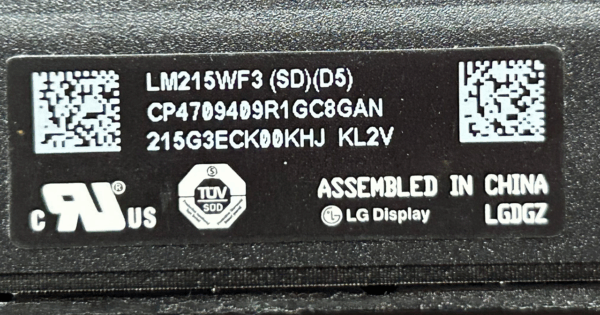

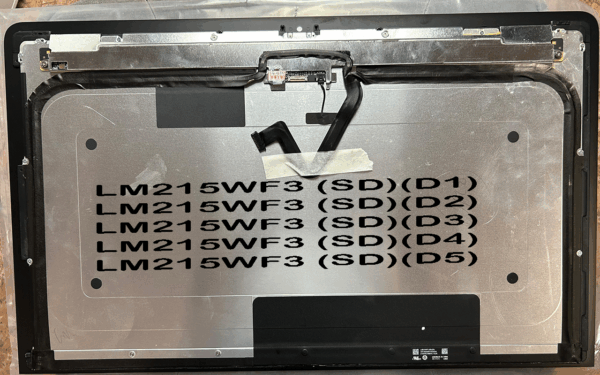

Panel Models: LM215WF3 (SD)(D1), (D2), (D3), (D4), (D5) — interchangeable versions
📺 Technical Specifications
-
Manufacturer: LG Display
-
Panel Type: IPS LED-backlit LCD
-
Size: 21.5 inches (diagonal)
-
Resolution: 1920 × 1080 (Full HD)
-
Surface Finish: Glossy
-
Connector: 30-pin eDP
-
Mounting: Standard frame brackets (compatible with A1418 chassis)
-
Condition: Original / Grade-A refurbished
-
Backlight Type: LED
-
Viewing Angle: 178° / 178°
-
Brightness: 250–300 cd/m²
📦 Package Includes
-
LCD LED panel LM215WF3(SD)
-
No cables, adhesive, or glass cover included
🧰 Installation Notes
Professional installation is highly recommended. The display requires careful handling to avoid damage to the fragile connectors and glass.
🛡️ Warranty
✔️ 6-month limited warranty (does not cover physical damage or incorrect installation).
⚠️ Compatibility Notice
Not compatible with iMac 27″ A1419 models or Retina 4K versions (use LM215UH1 for Retina).
